Portable Dental X-Ray Unit
Compact dental X-ray system with balanced power and portability for clinics and small practices.

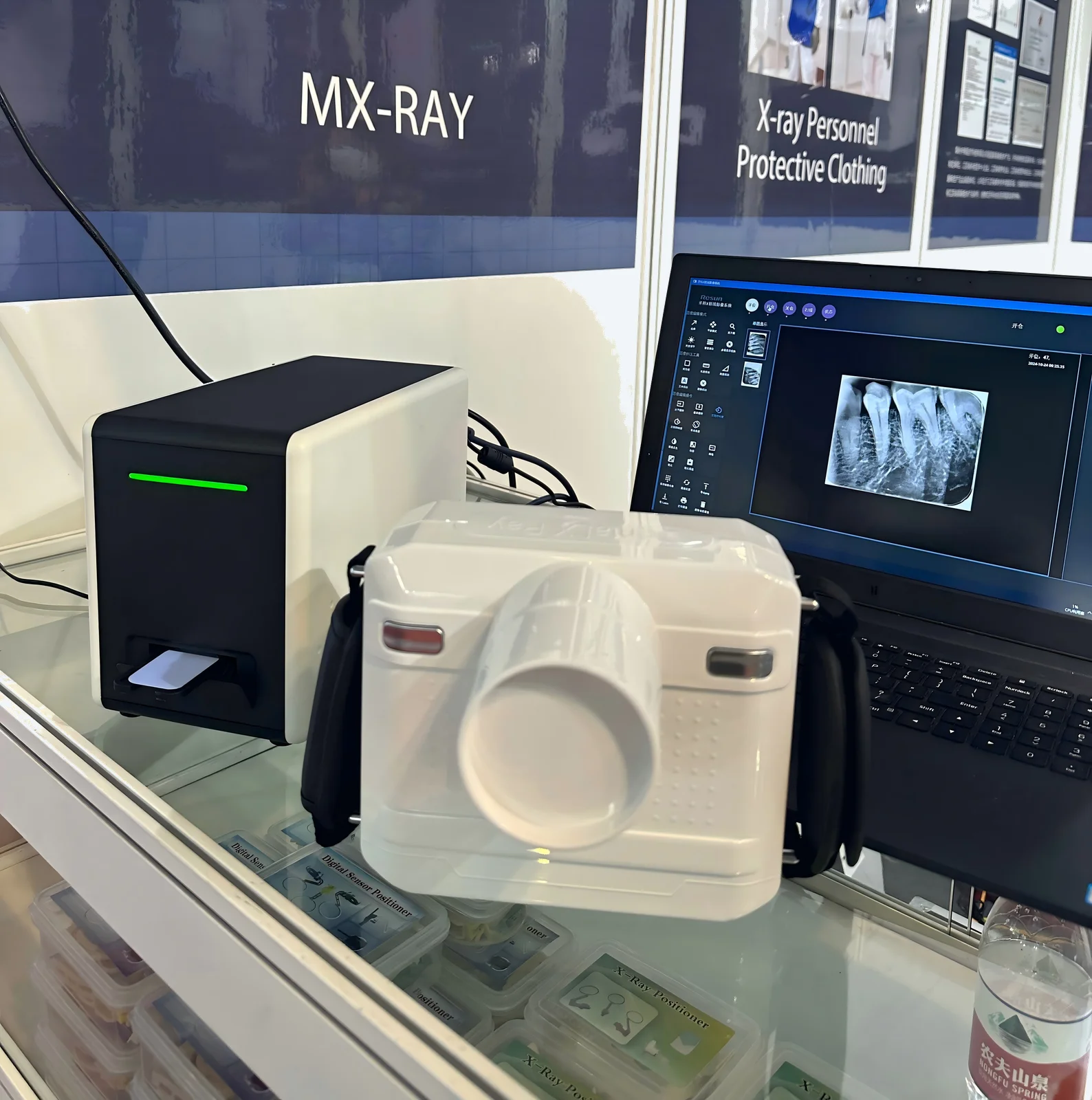

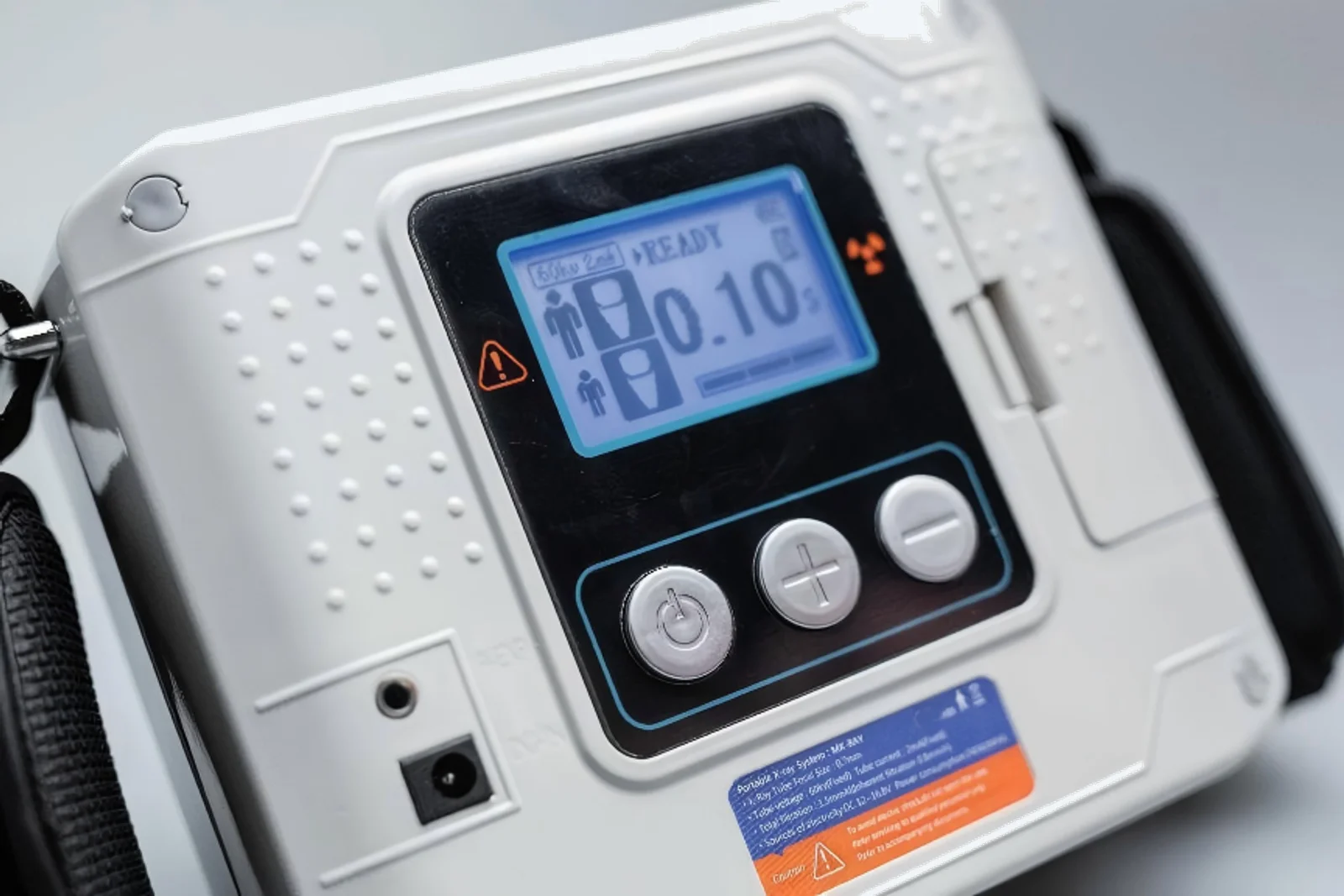

MX-RAY dental X-ray unit — DC high-frequency portable system for dental clinics, veterinary practices, and field use.
Technical Specifications
| Generator Type | DC High Frequency |
|---|---|
| Tube Voltage | 65 kV (fixed) |
| Tube Current | 2 mA (fixed) |
| Focal Spot Size | 0.4 mm |
| Target Angle | 12.5° |
| Exposure Time | 0.05–1.35 second (0.01 sec step) |
| Total Filtration | 1.5 mm Al |
| X-ray Field | 50 mm (round-style) |
| Weight | About 1.8 kg |
| Dimensions | 144.5 (W) × 222.5 (D) × 195 (H) mm |
| Battery | DC 16.8V |
Resun reserves the right to modify the design and specifications contained herein without prior notice.
Product availability and specifications may vary by region. Contact us for detailed datasheets and export support.
