Portable Dental & Veterinary X-Ray
High-frequency portable X-ray unit for dental practices, veterinary clinics, and mobile diagnostics.

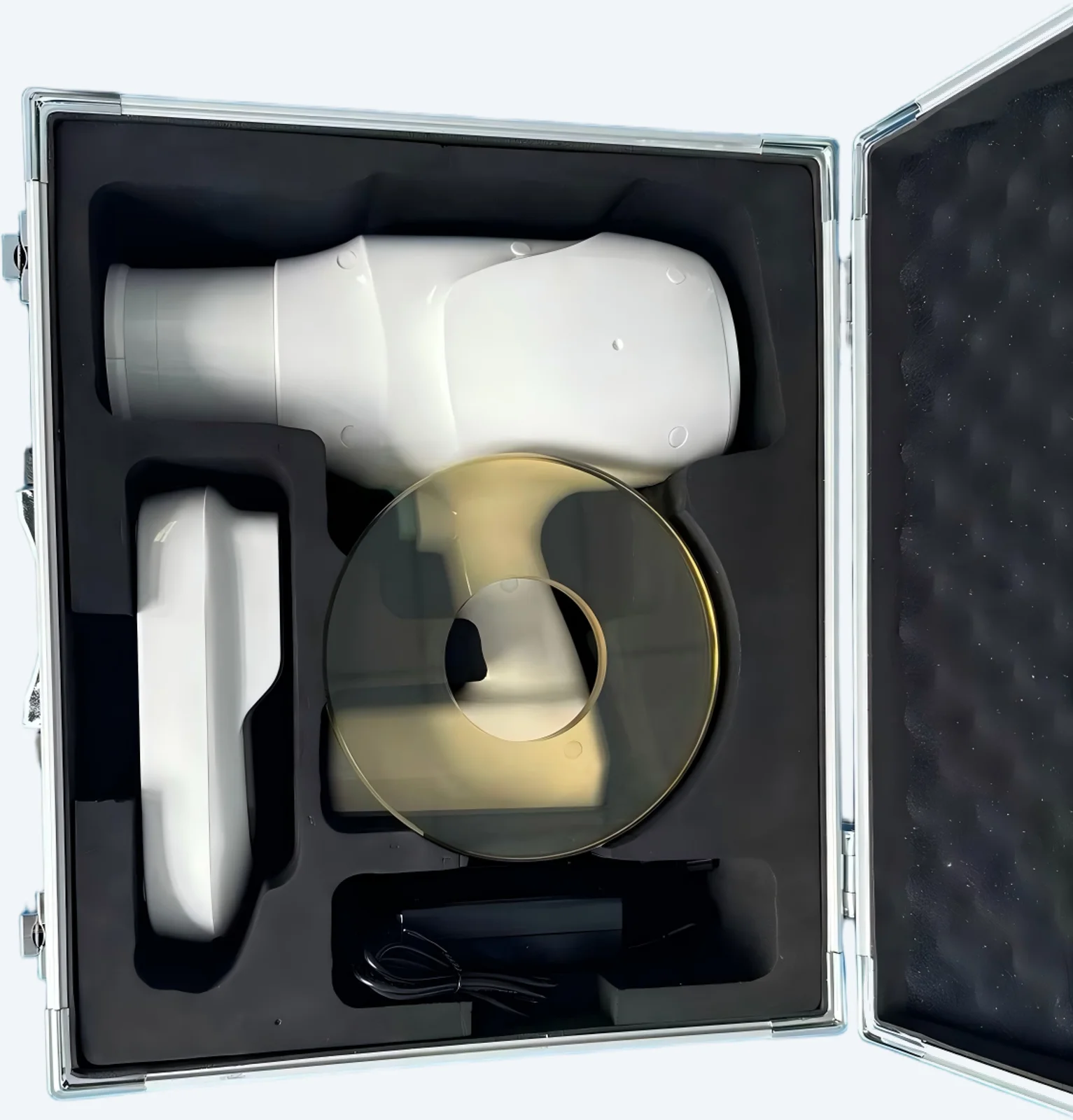

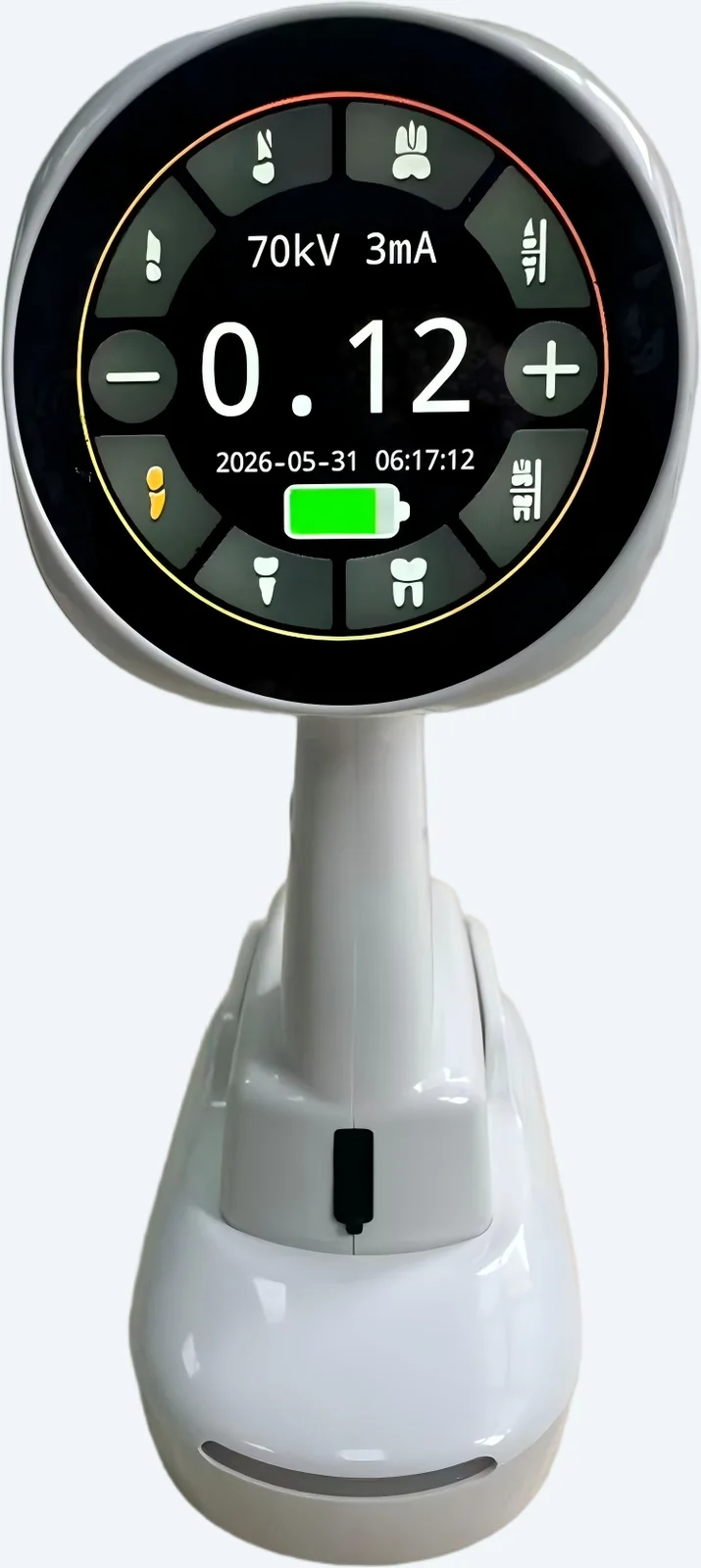

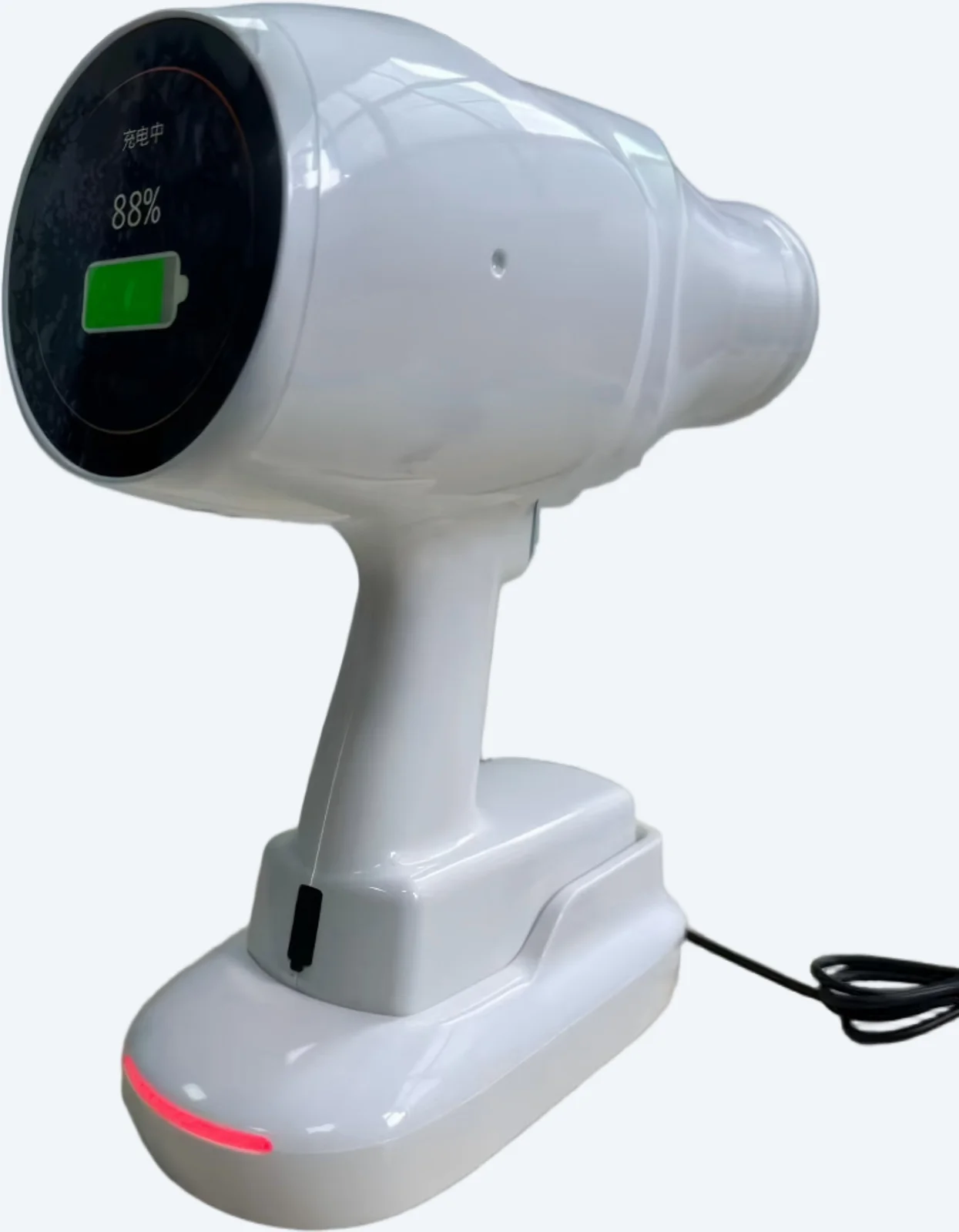

MX703 portable X-ray system for veterinary clinics, dental practices, and mobile diagnostics.
Technical Specifications
| Tube Voltage | 70 kV (fixed) |
|---|---|
| Tube Current | 2or3 mA (Adjustable) |
| High Voltage Circuit | High frequency inverter method(150KHZ) |
| X-ray Control | Micro processor controlled |
| Time Setting Range | 0.1–1.0 second (0.01 sec step)/2mA;0.1–0.7 second (0.01 sec step)/3mA |
| X-ray Tube Type | Stationary anode |
| Focal Spot Size | 0.4 mm |
| Target Angle | 12.5° |
| Total Filtration | 1.8 mm Al (inherent 0.8 + added 1.0 mm Al) |

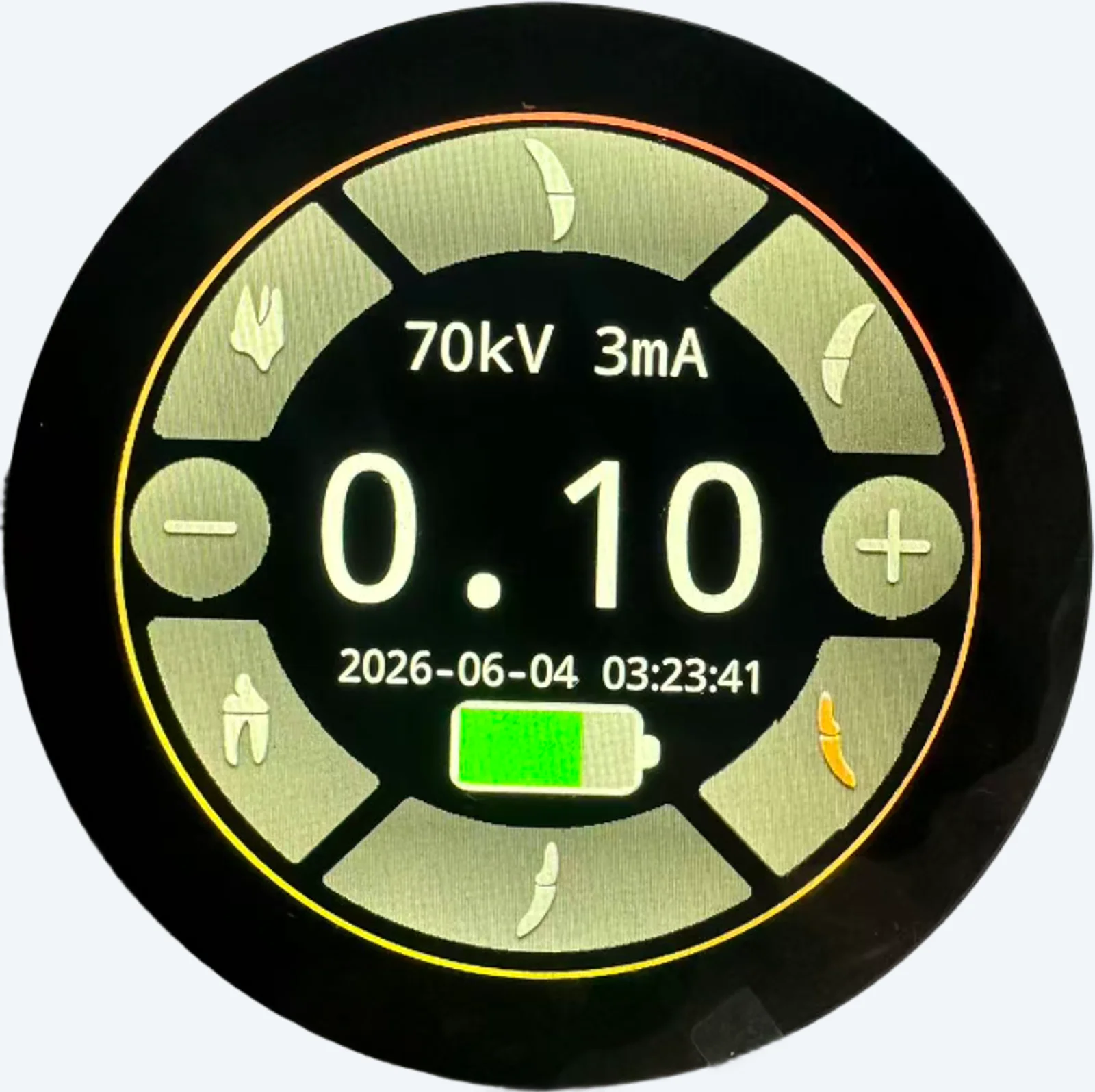

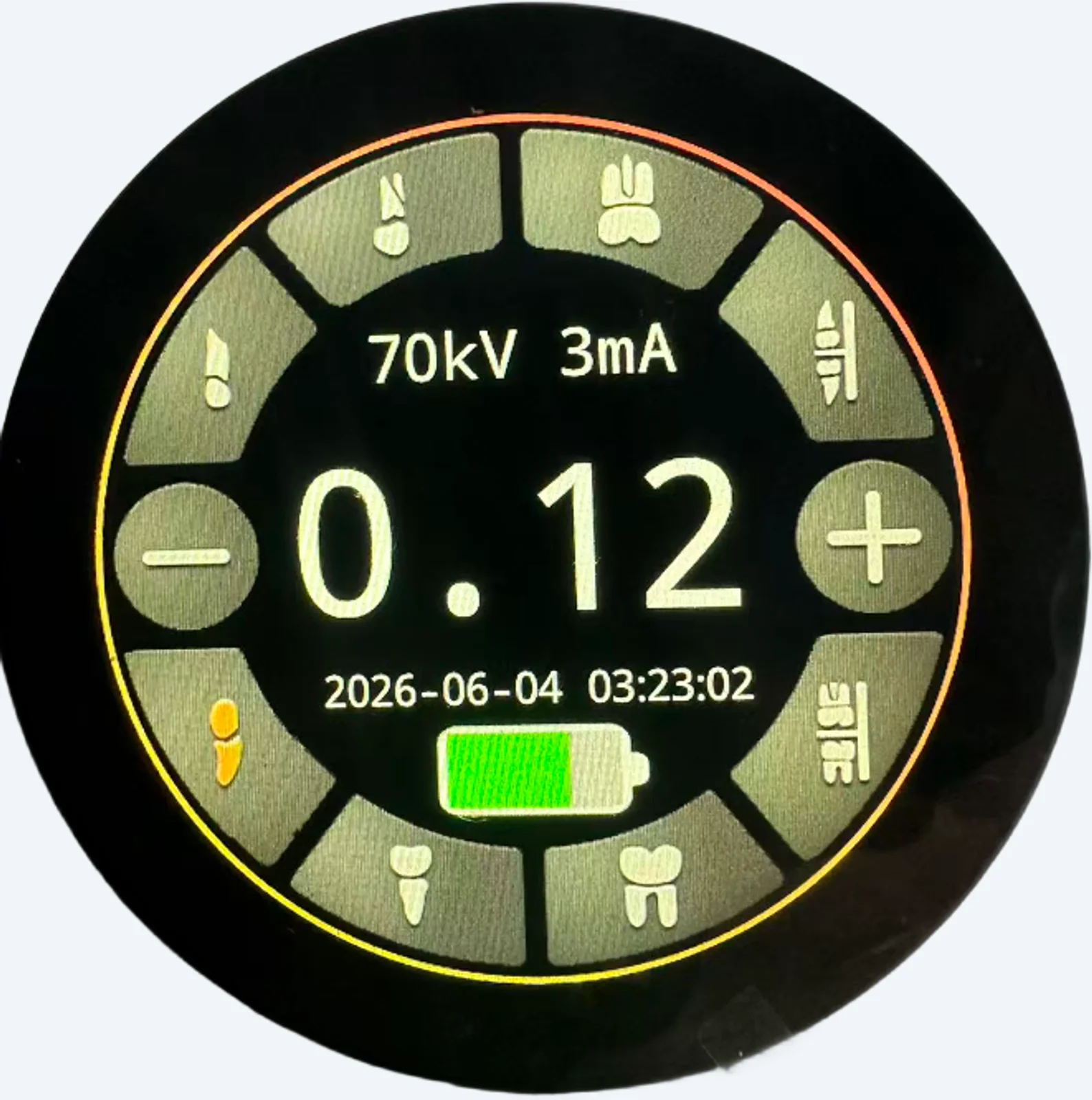

| Display | Capacitive touch screen |
| Weight | 1.7 kg |
| Battery | DC 24V |
| Duty Cycle | 1:60 or greater |
| Cooling System | Non-oil cooled |
Resun reserves the right to modify the design and specifications contained herein without prior notice.
Product availability and specifications may vary by region. Contact us for detailed datasheets and export support.
