Handheld Gun-Style Portable X-Ray
Lightweight handheld dental X-ray for field use, equine care, and mobile clinical imaging.

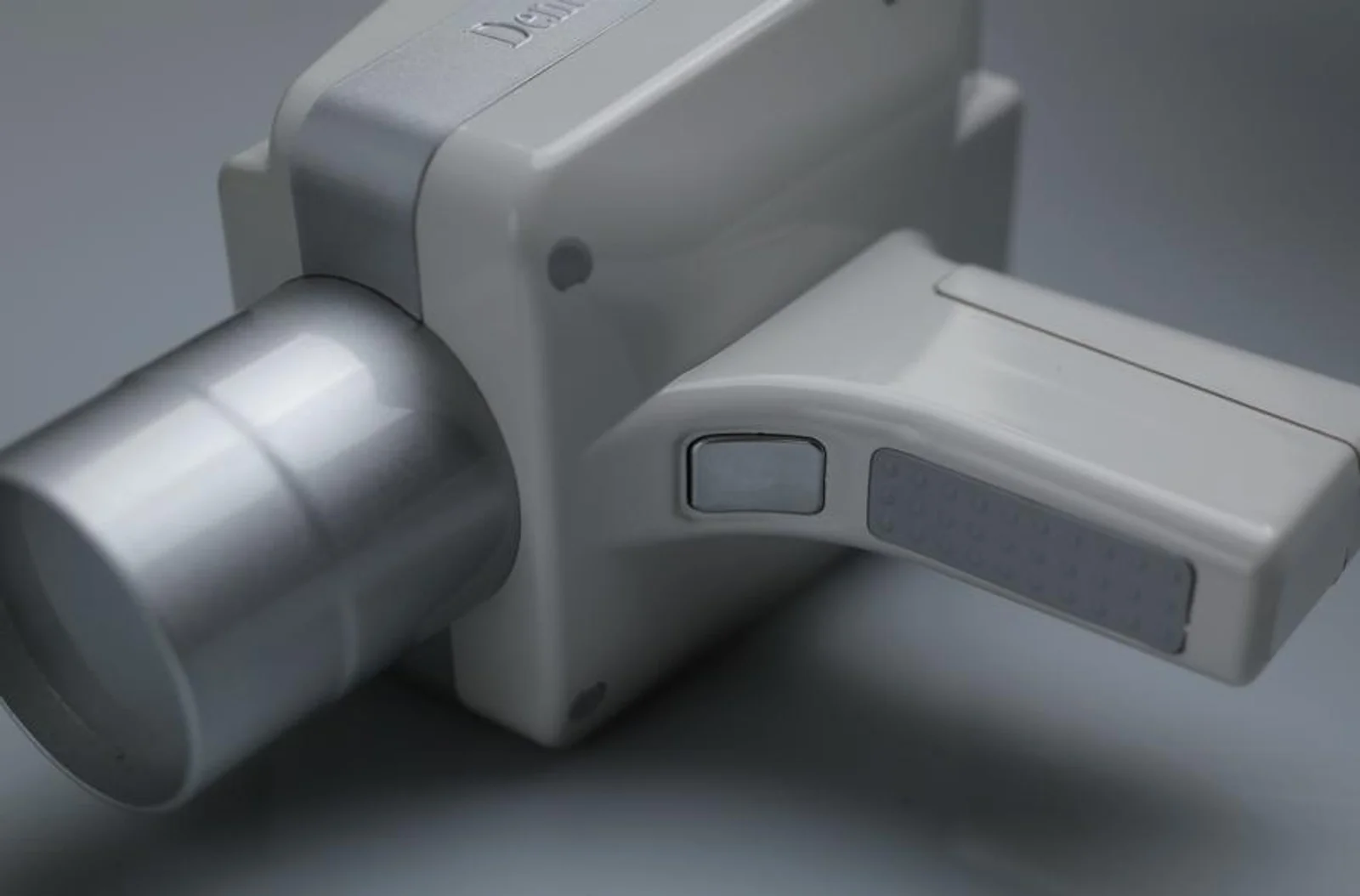

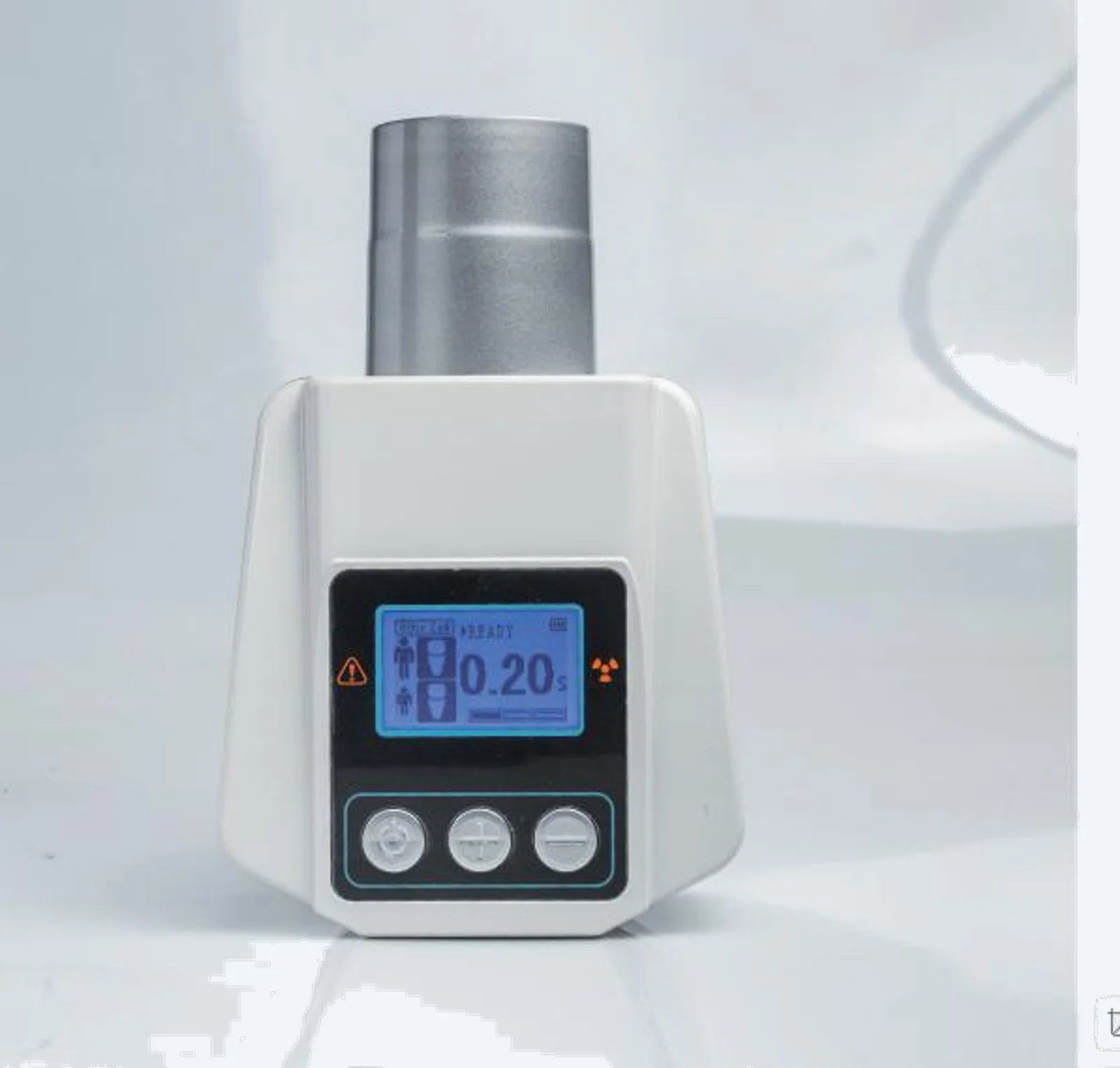

Hand-RAY dental X-ray unit — handheld DC high-frequency generator for mobile dental, veterinary, and clinical diagnostics.
Technical Specifications
| Generator Type | DC High Frequency |
|---|---|
| Tube Voltage | 65 kV (fixed) |
| Tube Current | 2 mA (fixed) |
| Focal Spot Size | 0.4 mm |
| Target Angle | 12.5° |
| Exposure Time | 0.05–1.35 second (0.01 sec step) |
| Total Filtration | 1.5 mm Al |
| X-ray Field | 50 mm (round-style) |
| Weight | About 1.8 kg |
| Dimensions | 144.5 (W) × 222.5 (D) × 195 (H) mm |
| Battery | DC 16.8V |
Resun reserves the right to modify the design and specifications contained herein without prior notice.
Product availability and specifications may vary by region. Contact us for detailed datasheets and export support.
