أشعة سنية محمولة داخل الفم
حل اقتصادي للتصوير الشعاعي داخل الفم الروتيني في البيئات السريرية ورعاية الحيوانات.

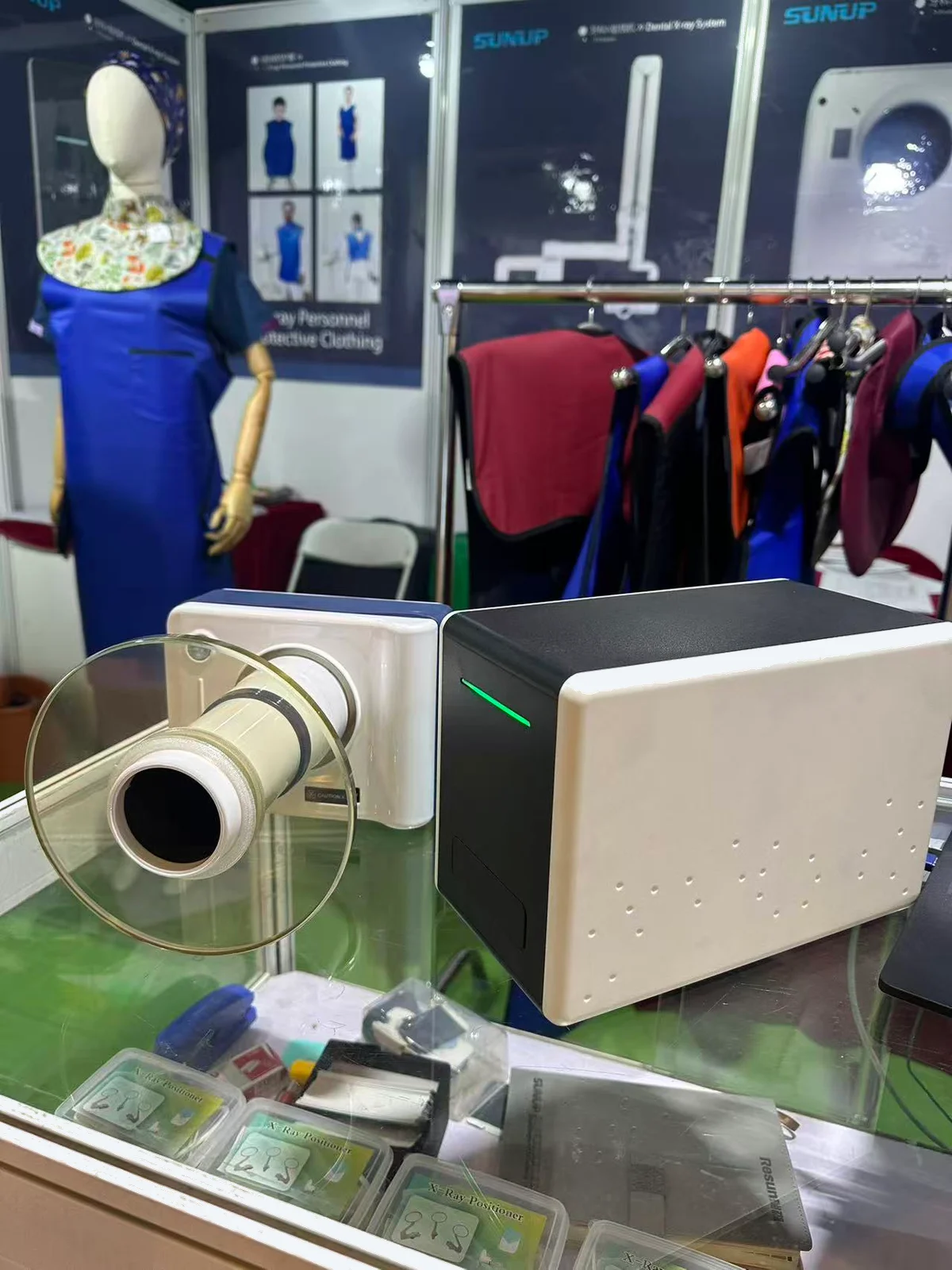

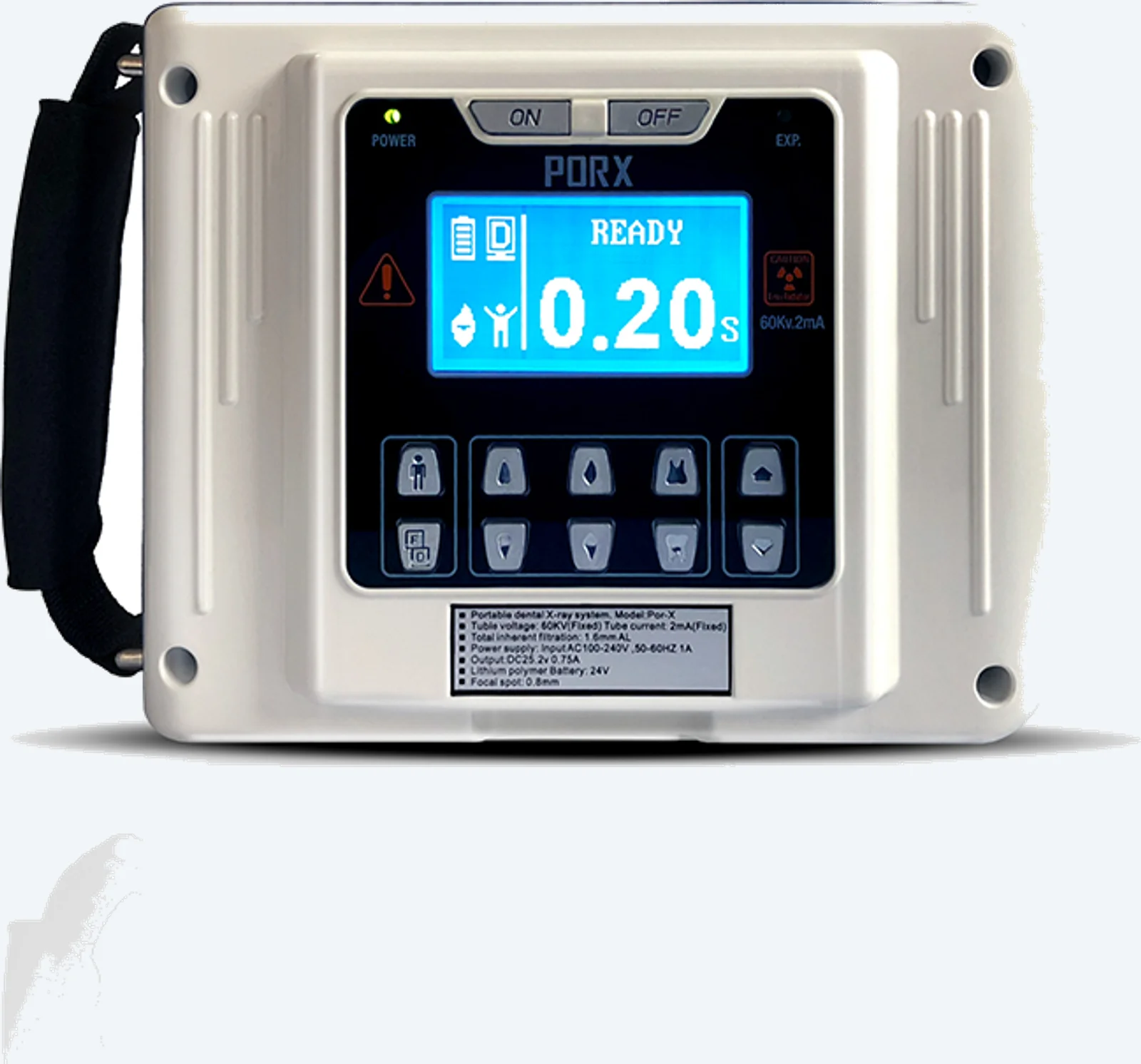

PORX portable dental X-ray unit — lightweight handheld design for flexible intraoral imaging in dental and clinical settings.
الميزات الرئيسية
- Light weight for portable hand-held use.
- Low radiation exposure with high-quality X-ray output.
- Micro-computer circuit monitors and precisely regulates kV, mA, and exposure time.
- Simple up/down arrows adjust exposure in 0.01 second steps (0.01–1.60 sec.).
- Pre-programmed exposure times for fast, easy operation.
- Internal lead shield protects operator and patient from dispersed radiation.
المواصفات الفنية
| Tube Voltage | 65 kV (fixed) |
|---|---|
| Tube Current | 2 mA (fixed) |
| High Voltage Circuit | High frequency inverter method |
| X-ray Control | Micro processor controlled |
| Time Setting Range | 0.01–1.6 second (0.01 sec step) |
| X-ray Tube Type | Stationary anode |
| Focal Spot Size | 0.4 mm |
| Target Angle | 12.5° |
| Total Filtration | 1.6 mm Al (inherent 0.8 + added 0.8 mm Al) |
| Display | LCD |
| Weight | 2.0 kg |
| Battery | DC 24V |
| Duty Cycle | 1:60 or greater |
| Cooling System | Non-oil cooled |
Resun reserves the right to modify the design and specifications contained herein without prior notice.
توفر المنتجات والمواصفات قد يختلف حسب المنطقة. تواصل معنا للحصول على ملفات المواصفات ودعم التصدير.
