→ Performance Characteristics:

1. Lightweight & Portable: Exceptional dimension ratio (length×width×height), weighing only 1.8kg.

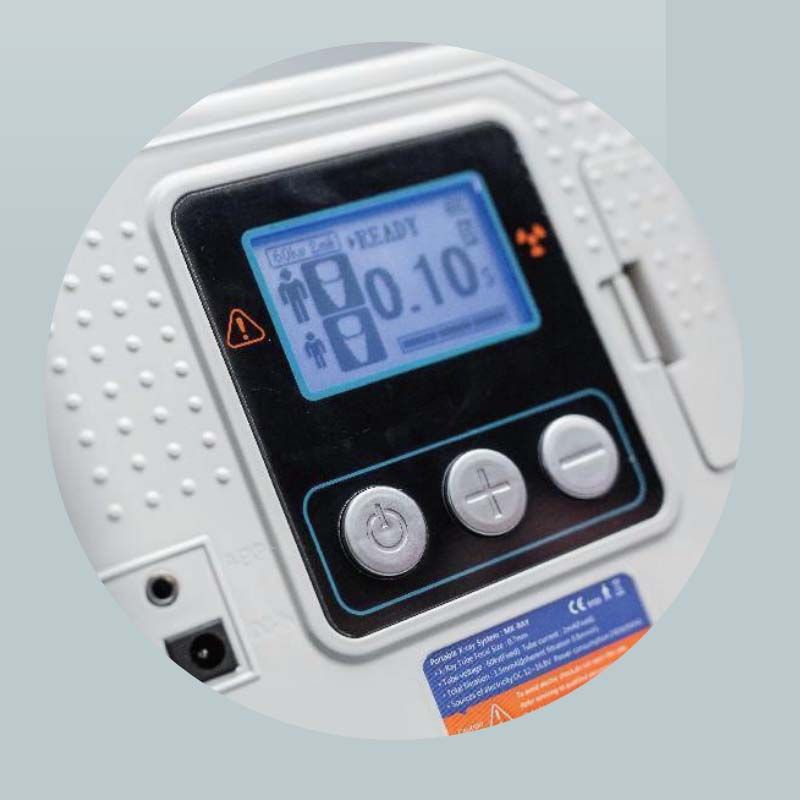

2. Large Clear LCD Display: Delivers high-definition imaging with superior contrast.
3. Inverter Ultra-High Frequency Circuit: Operates at 100KHZ for stable performance.
4. Precise Exposure Control: Adjustable in 0.05-second increments for intuitive operation.
5. Minimal Radiation Exposure: Ultra-low X-ray emission protects both operators and patients from scattered radiation.
6. Imported Components: Long-lasting durability with easy battery replacement.
7. Intelligent Safety System: Automatic fault detection on startup, plus built-in temperature/overvoltage/undervoltage protection.
8. Universal Compatibility: Works with all digital sensors available on the market.

• Tube Voltage: 60kV
• Tube Current: 2mA
• Cooling Method: Oil Cooling
• Total Filtration: 1.5mm Al
• Target Angle: 16°
• Exposure Time: 0.05–1.35 seconds
• X-Ray Tube Focus Size: 0.7mm
• X-Ray Field Size: 50mm (circular)
• Dimensions: 175.6(W)×150.3(D)×149(H)mm
• Weight: 1.8KG
